Segger emFile



keil_kit

emFile is a file system for embedded applications which can be used on any media, for which you can provide basic hardware access functions.



emFile is a high performance library that has been optimised for minimum memory consumption in RAM and ROM, high speed and versatility.



It is written in ISO C and can be used on any CPU..











Manuals and Trial Versions



Manuals and trial versions are available. Please contact us.



Layers

click here

Performance

click here

Footprint

click here

Drivers and media supported

click here












Features



  • MS DOS/MS Windows-compatible FAT12, FAT16 and FAT32 support.

  •

  • An optional module that handles long file names of FAT media.



  • Multiple device driver support. You can use different device drivers with emFile, which allows you to access different types of hardware with the file system at the same time.



  • MultiMedia support. A device driver allows you to access different media at the same time.



  • OS support. emFile can be easily integrated into any OS. This allows using emFile in a multi-threaded environment.



  • ANSI C stdio.h-like API for user applications. An application using the standard C I/O library can easily be ported to use emFile.



  • Very simple device driver structure. emFile device drivers need only basic functions for reading and writing blocks. There is a template included.



  • An optional device driver for NAND flash devices, which can be easily used with any kind of NAND flashes



  • An optional device driver for MultiMedia & SD cards using SPI mode or card mode that can be easily integrated.



  • An optional IDE driver, which is also suitable for Compact Flash using either .True IDE. or .Memory Mapped. mode.



  • An optional NOR flash (EEPROM) driver that handles different flash sector sizes.



  • An optional proprietary file system (EFS) with native long file name support.

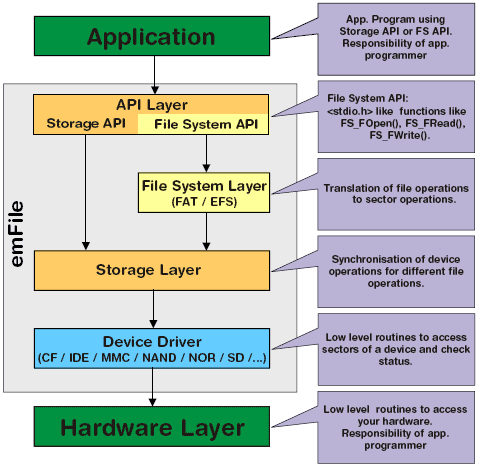

Layer descriptions



API Layer

The API Layer is the interface between emFile and the user application. It is subdivided in two parts, Storage API and File System API. The File System API contains file functions in ANSI C stdio style, such as FS_FOpen(), FS_FWrite() etc. The API Layer transfers these calls to the File System Layer. Currently the FAT file system or an optional file system, called EFS, are available for emFile. Right now they cannot be used simultaneously. The Storage API contains the functions which are required to initialise and access a storage medium. The Storage API allows sector read and write operations. The API Layer transfers these calls to the Storage Layer. The Storage API is optimised for applications which do not require file system functionality like file and directory handling. A typical application which uses the Storage API could be a USB mass storage device, where data has to be stored on a medium, but all file system functionality is handled by the host PC.



File System Layer

The file system layer translates file operations to logical block (sector) operations. After such a translation, the file system calls the logical block layer and specifies the corresponding device driver for a device.



Storage Layer

The main purpose of the Storage Layer is to synchronize accesses to a device driver. It furthermore provides a simple interface for the File System API. The Storage Layer calls a device driver to perform a block operation. It also contains the cache mechanism.



Device Driver

Device drivers are low-level routines that are used to access sectors of the device and to check status. It is hardware independent but depends on the storage medium.



Hardware Layer

These are the low level routines to access your hardware. These routines simply read and store fixed length sectors. The structure of the device driver is simple in order to allow easy integration of your own hardware.



Performance



A benchmark is used to measure the speed of the software on available targets. This benchmark is in no way complete, but it gives an approximation of the length of time required for common operations on various targets.



Configuration and performance table

All values are in KBytes/sec.

Device

CPU Speed

Medium

W

R

Atmel AT91SAM7S

48 MHz

MMC using SPI with 24MHz

1000.00

1000.00

Atmel AT91SAM7S

48 MHz

NAND with 512 bytes per page
using Port mode

800.00

2000.00

Atmel AT91SAM7S

48 MHz

NAND with 2048 bytes per page
and a sector size of 512 bytes
using Port mode

695.65

2000.00

Atmel AT91SAM7S

48 MHz

NAND with 2048 bytes per page
and a sector size of 2048 bytes
using the built-in NAND controller / external bus-interface

1333.33

2285.71

Atmel AT91SAM9261

200 MHz

RAM disk

128000

128000

Atmel AT91SAM9261

200 MHz

NAND with 2048 bytes per page
and a sector size of 512 bytes
using the built-in NAND controller / external bus-interface.

1446.33

4923.08

Atmel AT91SAM9261

200 MHz

NAND with 2048 bytes per page
and a sector size of 2048 bytes
using the built-in NAND controller / external bus-interface.

2598.98

10666.67

Atmel AT91SAM7SE

48 MHz

NAND with 2048 bytes per page
and a sector size of 512 bytes
using the built-in NAND controller / external bus-interface.

1087.05

3103.03

Atmel AT91SAM7SE

48 MHz

NAND with 2048 bytes per page
and a sector size of 2048 bytes
using the built-in NAND controller / external bus-interface.

3792.59

5885.06

LogicPD LH79520

51 MHz

RAM disk

20000

20000

LogicPD LH79520

51 MHz

IDE mem-mapped

1454.55

1753.42

LogicPD LH79520

51 MHz

MMC using SPI with 12MHz

558.95

1368.98

Cogent EP7312

74 MHz

CompacFlash card, True IDE mode

1951.24

2500.00

Cogent EP7312

74 MHz

HDD, True IDE mode

1760.55

2450.16



Description of the performance tests



The performance tests are executed as described and in the order below.
Performance test procedure:

  1. Format the drive.

  2. Create and open a file for writing.
    W: Start measuring of write performance.

  3. Write a multiple of 8 Kbytes.
    W: Stop measuring of write performance.

  4. Close the file

  5. Reopen the file.
    R: Start measuring of read performance.

  6. Read a multiple of 8 Kbytes.
    R: Stop measuring of read performance.

  7. Close the file



  1. Show the performance results.

The Performance test can be reproduced. Include Performance.c (located in the folder .\Sample\API) into your project. Compile and run the project on your target hardware.





Memory footprint

The file system is designed to fit many kinds of embedded design requirements. Several features can be excluded from build to get a minimal system that can efficiently access any FAT media.

In the following section memory usage for different typical 16 and 32- bit systems is listed.


Please note that the values are valid for the given approximate values. Features can affect the size of others. For example if FAT32 is deactivated, the format function gets smaller because the 32 bit specific part of format is not added into the compilation.

This minimal configuration supports FAT12/16, but has no media format features, no directory support, no free disk space function (DiskInfo) and only one file can be opened at a time:

The configuration file (FS_Conf.h) looks as follows:

#define FS_POSIX_DIR_SUPPORT

0

#define FS_FAT_NOFORMAT

1

#define FS_FAT_DISKINFO

0

#define FS_FAT_NOFAT32

1

#define FS_MAXOPEN

1







16-bit CPUs

System

Detail

Description

CPU

M16C

Tool chain

IAR Workbench for M16C V2.12A

Memory Model

Data model: Near pointer; Constants: near memory

Compiler options

Highest size optimization

Device driver

MMC/SD driver

Memory requirements

Detail

ROM [Bytes]

RAM [Bytes]

Minimal file system

11384

1122

MMC/SD driver

+2172

528

Additional support for

Directory

+2654

+1310 (for each directory)

(Auto) format

+2175

0

Diskinfo

+758

0

FAT32

+658

0



Additional open files

0

1060



32-bit CPUs

System

Detail

Description

CPU

ARM 7

Tool chain

IAR Workbench for ARM V4.11A

Memory Model

ARM7, thumb instructions; no interwork;

Compiler options

Highest size optimization;

Device driver

MMC/SD driver



Memory requirements

Detail

ROM [Bytes]

RAM [Bytes]

Minimal file system

10298

1129

MMC/SD driver

+2358

532

Additional support for

Directory

+2208

+1328 (for each directory)

(Auto) format

+2056

0

Diskinfo

488

0

FAT32

352

0





Additional open files

0

1068





DRIVERS  and media supported



emFile has been designed to cooperate with any kind of hardware. To use specific hardware with emFile, a so-called device driver for that hardware is required. The device driver consists of basic I/O functions for accessing the hardware and a global table that holds pointers to these functions.
The list below shows, which drivers are available for emFile.

  •

  • CompactFlash card & IDE driver

  • emFile's CompactFlash & IDE device driver can be used to access most ATA HD drives or CompactFlash storage cards also known as CF using true IDE or Memory card mode.



  • MultiMedia & SD card driver

emFile supports the use of MultiMedia & SecureDigital (SD) cards. Two optional generic drivers for MultiMedia & SecureDigital (SD) cards are available. MultiMedia & SecureDigital (SD) cards can be accessed though two different modes:

  • SPI MODE

  • MMC/SD card mode.

For both modes drivers are available. To use one of these drivers, you need to configure the MMC driver and provide basic I/O functions for accessing your card reader hardware. This section describes how to enable one of these drivers and all hardware access functions required by emFile's for either the MultiMedia & SD card SPI mode or Multi- Media & SD card mode driver.



  • NAND flash driver

emFile supports the use of NAND flashes. An optional driver for NAND flashes is available. The NAND driver requires very little RAM, it can work with sector sizes of 512 bytes or 2 Kbytes (small sectors even on large page NAND flashes) and is extremly efficient. The driver is designed to support one or multiple SLC (Single Level Cell) NAND flashes. The NAND flash driver can also be used to access ATMEL's DataFlash chips. To use it in your system, you will have to provide basic I/O functions for accessing your flash device.





  • NOR flash driver

The NOR flash driver can be used with any CFI compliant 16-bit chip. The Common Flash Memory Interface (CFI) is an open specification which may be implemented freely by flash memory vendors in their devices. It was developed jointly by Intel, AMD, Sharp, and Fujitsu. The idea behind CFI was the interchangeability of current and future flash memory devices offered by different vendors. If you use only CFI compliant flash memory chips, you are able to use one driver for different flash products by reading identifying information out of the flash chip itself. The identifying information for the device, such as memory size, byte/word configuration, block configuration, necessary voltages, and timing information, is stored directly on the chip.



  • RAM disk driver

emFile comes with a simple RAM disk driver that makes it possible to use a portion of your system RAM as drive for data storage. This can be very helpful to examine your system performance and may also be used as a in-system test procedure



  • WinDrive driver

The purpose of this driver is to run emFile for test and simulation purposes on a PC running Windows. This driver is compatible with use any Windows logical driver on a Windows NT system.
Be aware, that Win9X is not supported, because it cannot access logical drives with "CreateFile".
