eXtremeDB Embedded Database Standard Edition

Download the eXtremeDB data sheet (PDF)

The eXtremeDB Standard Edition embedded database is McObject's core product: an exceptionally fast database, designed for performance, with a strict memory-based architecture and direct data manipulation. (For a database that incorporates on-disk persistence, see McObject's eXtremeDB Fusion product.) Storing and manipulating data in exactly the form used by the application removes overheads associated with caching and translation. Typical read and write accesses are at the level of a few microseconds, or less. The engine is reentrant, allowing for multiple execution threads, with transactions supporting the ACID properties, assuring transaction and data integrity.

The Runtime Environment
Shared Memory Database
XML Extensions
The Development Environment
Supported Platforms

The Runtime Environment

The eXtremeDB Runtime Environment provides:

Accelerated transactions. The eXtremeDB in-memory database stores data entirely in main memory, eliminating the need for disk access, caching and other processes that add overhead to disk-based databases. The eXtremeDB transaction manager is optimised for high transaction rates.

Ultra-small footprint. By intelligently redesigning and streamlining core database functions, McObject offers an in-memory database system (IMDS) with an unbelievably small RAM footprint of approximately 100K! This makes eXtremeDB a powerful enhancement to many intelligent devices with resource limits that, until now, ruled out the use of an embedded database system.

Direct data access. Earlier data management technology required copying records from database storage to cache, and then to a new location for manipulation by the application. By operating as a RAM database that works with data directly in main memory, eXtremeDB eliminates the overhead of duplicate data sets and of copying data between locations.

No Translation. eXtremeDB stores data in the exact form in which it is used by the application - no mapping a C data element to a relational representation, for example, or requiring additional code to pick fields from tables and copy them to C structures. By eliminating this overhead, eXtremeDB reduces memory and CPU demands.

High reliability. For data integrity, eXtremeDB transactions support the ACID properties, ensuring that operations grouped into transactions will complete together or the database will be rolled back to a pre-transaction state.

eXtremeDB provides two APIs. The first is a standard function library for basic operations like cursor movement and opening and closing the database. The second API, for manipulating data, derives from the given application’s data model and thus reflects the purpose and schema for which it is being used. For the runtime environment, this means more reliable code – the C/C++ compiler will catch data typing and assignment errors when the application is built. This makes eXtremeDB-based applications more reliable, since it is much harder for coding errors to make it into the final build

McObject

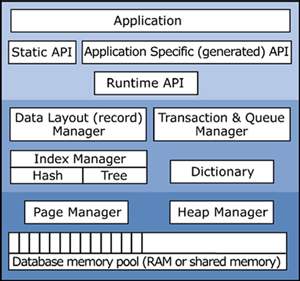

eXtremeDB is designed for High-Performance: optimised memory managers, hash and tree-based indices, multiple data layouts, transactions with priority scheduling and an application-specific API. >top of page

Shared Memory Databases

In addition to the eXtremeDB embedded database that operates in conventional memory, a shared memory version is available for multi-processing environments such as Solaris, QNX or Linux. With this version, an eXtremeDB database is created in shared memory and mapped to the local address space of each process, thereby allowing multiple processes and multiple threads within each process to share eXtremeDB in-memory databases.

The shared memory eXtremeDB runtime is built as a different binary (library or archive) than the conventional memory version. A single process can still create and connect to the database from multiple threads using the shared memory runtime, however, the database(s) will be placed into shared memory instead of the process’ memory. Depending on the target platform, eXtremeDB supports one of the following three synchronization methods when managing shared memory databases:

A System V IPC mechanism is implemented for operating environments such as Sun Solaris and Linux platforms (System V IPC methods are associated with system-wide integers, called keys, which are associated with files).

A POSIX shared memory implementation that is suitable for QNX 4.x and QNX 6.x platforms.

A Win32 shared memory implementation is deployed for the Microsoft Windows Embedded and Microsoft Windows classic platforms >top of page

eXtremeDB XML Extensions

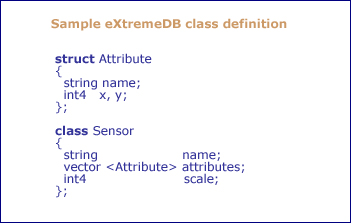

McObject developed the eXtremeDB XML Extensions to facilitate simple schema evolution and the exchange of data between the eXtremeDB embedded database and external systems. With the XML-enabled version, the eXtremeDB schema compiler generates new interface functions for each object that provide the means to

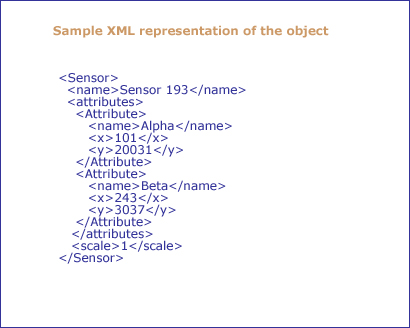

retrieve an object encoded as XML
create an object in the database from an XML document.
replace (update) the contents of an object already in the database with the content of an XML document
generate the XML schema for each class in the database.

McObject

The XML interface functions could be used, for instance, in concert with the eXtremeDB event notifications to cause data to be shared between an eXtremeDB embedded database and other XML-enabled systems when something of interest changes in the database. The XML interfaces can also be used to facilitate simple schema evolution by exporting the database to XML documents, adding/dropping fields, indexes, and classes, and importing the saved XML documents into the new database.

eXtremeDB XML and eXtremeDB XML schema encoding were developed in accordance with the W3C SOAP encoding recommendations. Thus, the XML interface functions could also be used in conjunction with an embedded Web server to deliver an embedded systems database context (from an application running within a consumer electronics device, for example) to a Web browser or any other SOAP client. The picture below illustrates this process.

SOAP Standards

W3C SOAP encoding recommendations can be found in the following documents:

http://www.w3.org/TR/soap12-part0/
http://www.w3.org/TR/soap12-part1/
http://www.w3.org/TR/soap12-part2/

XML schema encoding recommendations can be found in the follow W3C documents:

http://www.w3.org/TR/xmlschema-0/
http://www.w3.org/TR/xmlschema-1/

>top of page

The Development Environment

Developers strive to produce readable, maintainable, efficient code in the shortest possible time. The eXtremeDB in-memory database system (IMDS) includes several features that boost the developer’s capabilities when integrating the database in demanding real-time applications. Incorporating third party software often means learning and adopting an API that does not completely fit an application.

eXtremeDB’s project-specific API ensures that each database operation in the API reflects the type of the data being manipulated.

To help in application debugging, McObject’s embedded database includes numerous traps in the runtime code; these can be selectively disabled as development and testing progresses, to optimise the application for speed.

McObject offers full source code, to give an in-depth understanding of eXtremeDB within an application. In addition, eXtremeDB supports virtually all data types as well as extremely efficient indexing for queries. For querying, McObject provides hash indexes for exact match searches; tree indexes for pattern match, range retrieval and sorting; and object-identifier references, for direct access. Rather than storing duplicate data, indexes contain only a reference to data, keeping memory requirements for the RAM database to an absolute minimum.

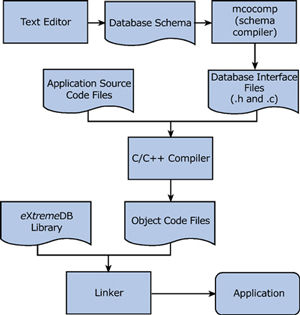

With eXtremeDB embedded database, the developer focuses on the data definition first, then eXtremeDB generates the API from this definition via the schema compiler

Mcobject

The result is:
An easy-to-learn API that is optimised for the application.

Code that is more legible as well as easier to write and maintain.

Compile-time type checking that helps eliminate coding errors.

Example: The following is a (simple) class and an example of the API to put a new value into a record in the database:

class Measurement {
         string measure;
         time timestamp;

 unique tree <measure, timestamp> trend;
         };

	    Measurement_measure_put(&m, meas);
         Measurement_timestamp_put(&m, value);

Progressive error detection and consistency checking features

If an application mistakenly passes a corrupted transaction or object handle into a runtime method, eXtremeDB (by default) raises a fatal exception and stops the execution of the program. In most cases, the application developer can then withdraw and examine the call stack to find the source of corruption. The eXtremeDB runtime implements many verification traps and consistency checks. Obviously, that does not come free; the runtime requires extra CPU cycles and space for that. However, when the application is debugged and consistently passes verification tests, developers can generate the optimised version of the eXtremeDB runtime, removing the traps and internal checks to restore valuable clock cycles.

Complex data types and efficient queries

Supports virtually all data types, including structures, arrays, vectors and BLOBs

Querying methods include hash indexes for exact match searches

Tree indexes support queries for pattern match, range retrieval and sorting

“Voluntary” indexes for program control over index population

Object-identifier references provide direct data access

Autoid for system-defined object identifiers

Rather than storing duplicate data, indexes contain only a reference to data, minimizing memory requirements

Synchronous/asynchronous event notifications

Optional object history

>top of page

Supported Platforms

Embedded Platforms:

VxWorks

QNX Neutrino

Various Real-Time Linux distributions

Lynx OS

RTXC Quadros, RTXC

INTEGRITY OS

Microsoft Windows Embedded Platforms

Windows Real-Time Extensions

Bare bones boards (no operating system required)

Server and Desktop Platforms:

Sun Solaris
HP-UX
Linux distributions
Classic Windows platforms (98/NT/200/XP)

Development Environments:

gnu tool chain (gcc 2.95 and higher)
Tornado (GNU and Diab compilers)
QNX Momentics IDE (C, C++, Embedded C++)
Metrowerks CodeWarrior IDE (various platforms)
GreenHills Multi
Microsoft Visual Studio (C/C++)
